Client2Door Developer Guide

---

Setting up, getting started

Refer to the guide Setting up and getting started.

---

Design

Architecture

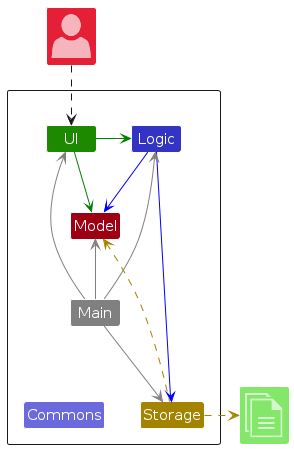

The Architecture Diagram given above explains the high-level design of the App.

Given below is a quick overview of main components and how they interact with each other.

Main components of the architecture

Main (consisting of classes Main and MainApp) is in charge of the app launch and shut down.

• At app launch, it initializes the other components in the correct sequence, and connects them up with each other.
• At shut down, it shuts down the other components and invokes cleanup methods where necessary.

The bulk of the app's work is done by the following four components:

• UI: The UI of the App.
• Logic: The command executor.
• Model: Holds the data of the App in memory.
• Storage: Reads data from, and writes data to, the hard disk.

Commons represents a collection of classes used by multiple other components.

How the architecture components interact with each other

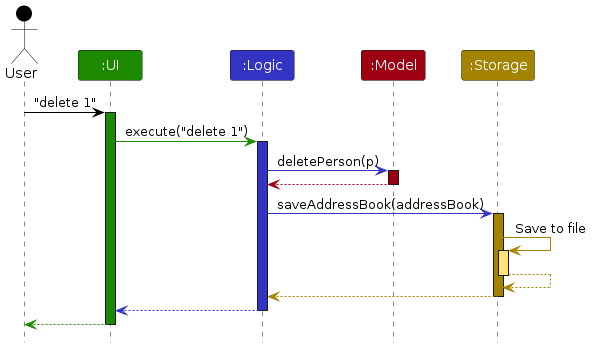

The Sequence Diagram below shows how the components interact with each other for the scenario where the user issues the command delete 1.

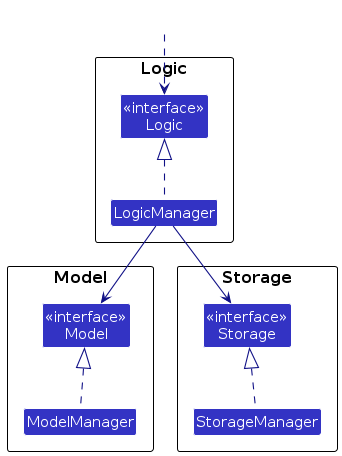

Each of the four main components (also shown in the diagram above),

• defines its API in an interface with the same name as the Component.
• implements its functionality using a concrete {Component Name}Manager class which follows the corresponding API interface mentioned in the previous point.

For example, the Logic component defines its API in the Logic.java interface and implements its functionality using the LogicManager.java class which follows the Logic interface. Other components interact with a given component through its interface rather than the concrete class (reason: to prevent outside component's being coupled to the implementation of a component), as illustrated in the (partial) class diagram below.

The sections below give more details of each component.

UI component

The API of this component is specified in Ui.java

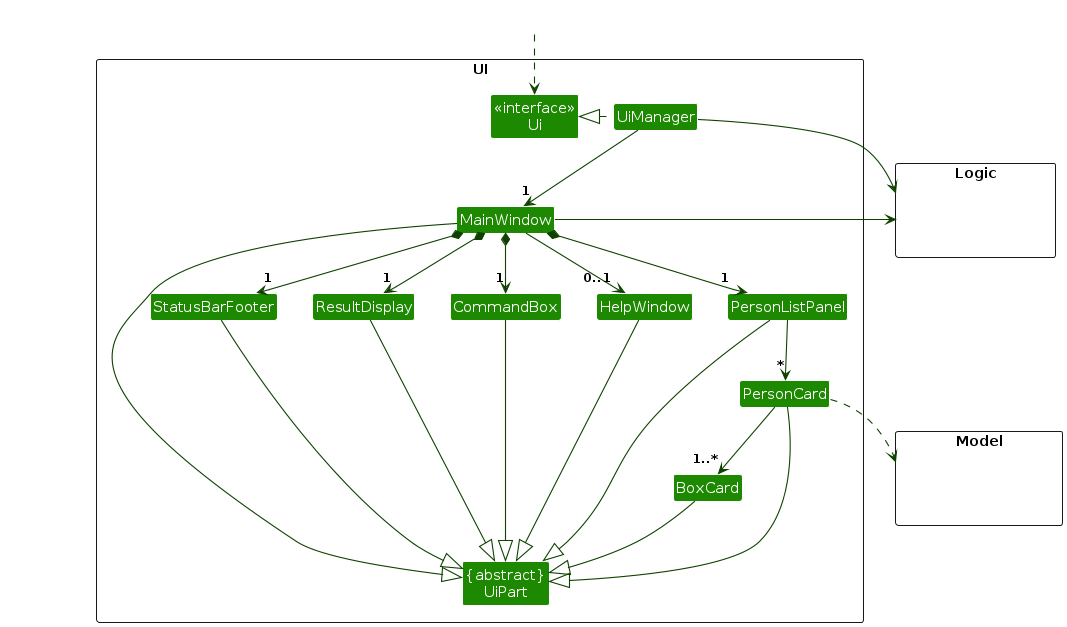

The UI consists of a MainWindow that is made up of parts e.g.CommandBox, ResultDisplay, PersonListPanel, StatusBarFooter etc. All these, including the MainWindow, inherit from the abstract UiPart class which captures the commonalities between classes that represent parts of the visible GUI.

The UI component uses the JavaFx UI framework. The layout of these UI parts are defined in matching .fxml files that are in the src/main/resources/view folder. For example, the layout of the MainWindow is specified in MainWindow.fxml

The UI component,

• executes user commands using the Logic component.
• listens for changes to Model data so that the UI can be updated with the modified data.
• keeps a reference to the Logic component, because the UI relies on the Logic to execute commands.
• depends on some classes in the Model component, as it displays Person object residing in the Model.

Logic component

API : Logic.java

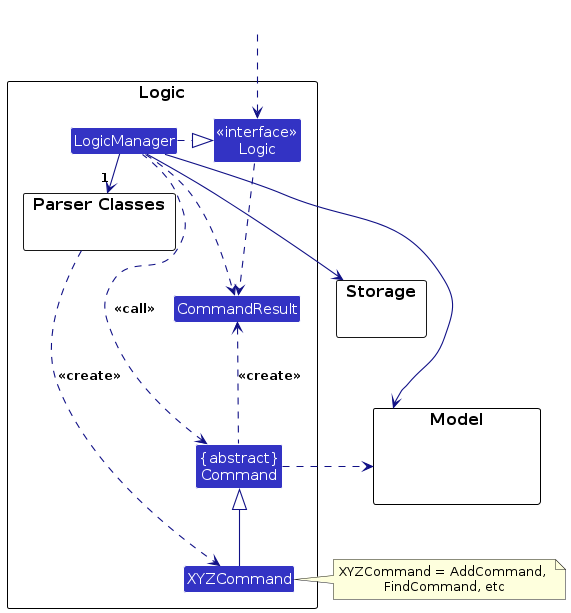

Here's a (partial) class diagram of the Logic component:

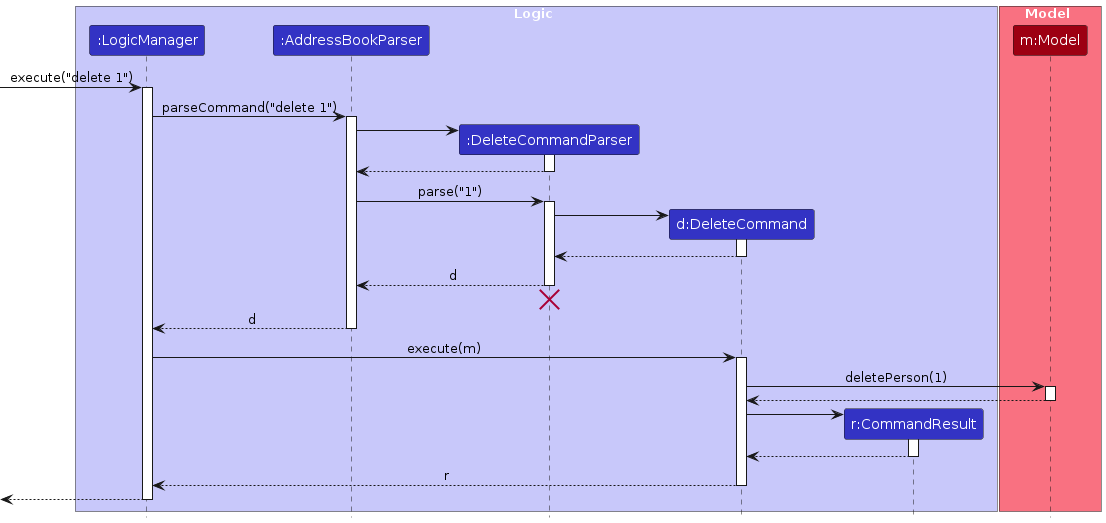

The sequence diagram below illustrates the interactions within the Logic component, taking execute("delete 1") API call as an example.

How the Logic component works:

1. When Logic is called upon to execute a command, it is passed to an AddressBookParser object which in turn creates a parser that matches the command (e.g., DeleteCommandParser) and uses it to parse the command.
2. This results in a Command object (more precisely, an object of one of its subclasses e.g., DeleteCommand) which is executed by the LogicManager.
3. The command can communicate with the Model when it is executed (e.g. to delete a person).
   Note that although this is shown as a single step in the diagram above (for simplicity), in the code it can take several interactions (between the command object and the Model) to achieve.
4. The result of the command execution is encapsulated as a CommandResult object which is returned back from Logic.

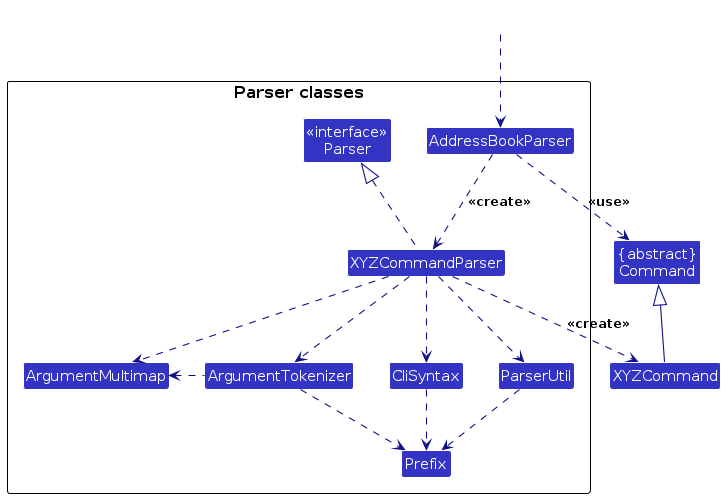

Here are the other classes in Logic (omitted from the class diagram above) that are used for parsing a user command:

How the parsing works:

• When called upon to parse a user command, the AddressBookParser class creates an XYZCommandParser (XYZ is a placeholder for the specific command name e.g., AddCommandParser) which uses the other classes shown above to parse the user command and create a XYZCommand object (e.g., AddCommand) which the AddressBookParser returns back as a Command object.
• All XYZCommandParser classes (e.g., AddCommandParser, DeleteCommandParser, ...) inherit from the Parser interface so that they can be treated similarly where possible e.g, during testing.

Model component

API : Model.java

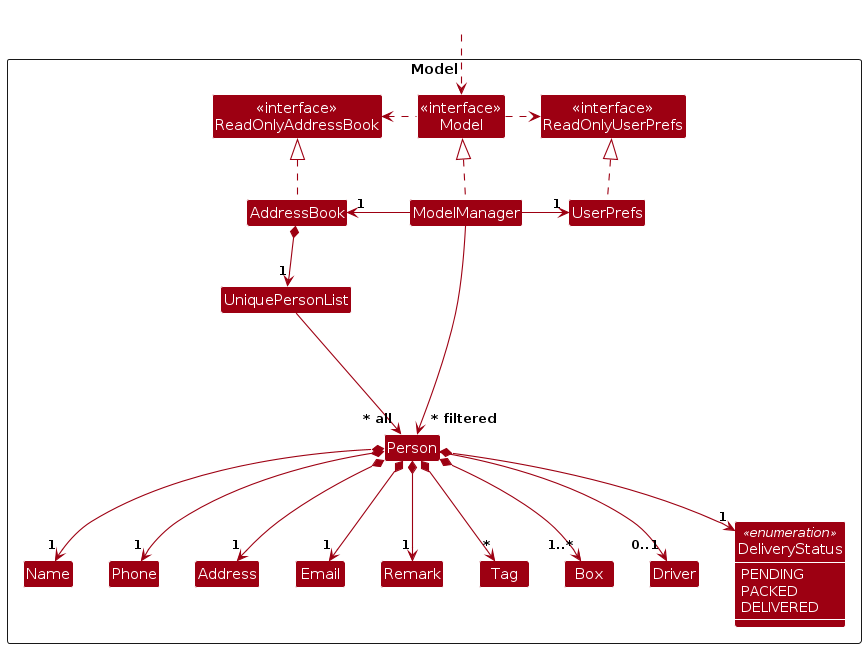

The Model component,

• stores the address book data i.e., all Person objects (which are contained in a UniquePersonList object).
• stores the currently 'selected' Person objects (e.g., results of a search query) as a separate filtered list which is exposed to outsiders as an unmodifiable ObservableList<Person> that can be 'observed' e.g. the UI can be bound to this list so that the UI automatically updates when the data in the list change.
• stores a UserPref object that represents the user’s preferences. This is exposed to the outside as a ReadOnlyUserPref objects.
• does not depend on any of the other three components (as the Model represents data entities of the domain, they should make sense on their own without depending on other components)

Storage component

API : Storage.java

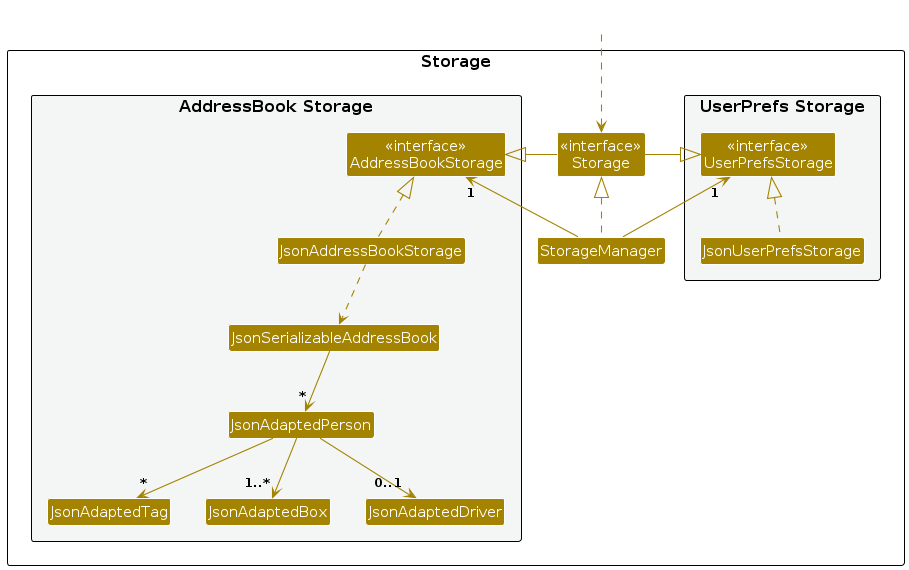

The Storage component,

• can save both address book data and user preference data in JSON format, and read them back into corresponding objects.
• inherits from both AddressBookStorage and UserPrefsStorage, which means it can be treated as either one (if only the functionality of only one is needed).
• depends on some classes in the Model component (because the Storage component's job is to save/retrieve objects that belong to the Model)
• serializes driver data as part of each person's JSON representation, using JsonAdaptedDriver to convert between the Driver model object and its JSON form.

Common classes

Classes used by multiple components are in the seedu.address.commons package.

---

Implementation

This section describes some noteworthy details on how certain features are implemented.

Assign drivers feature

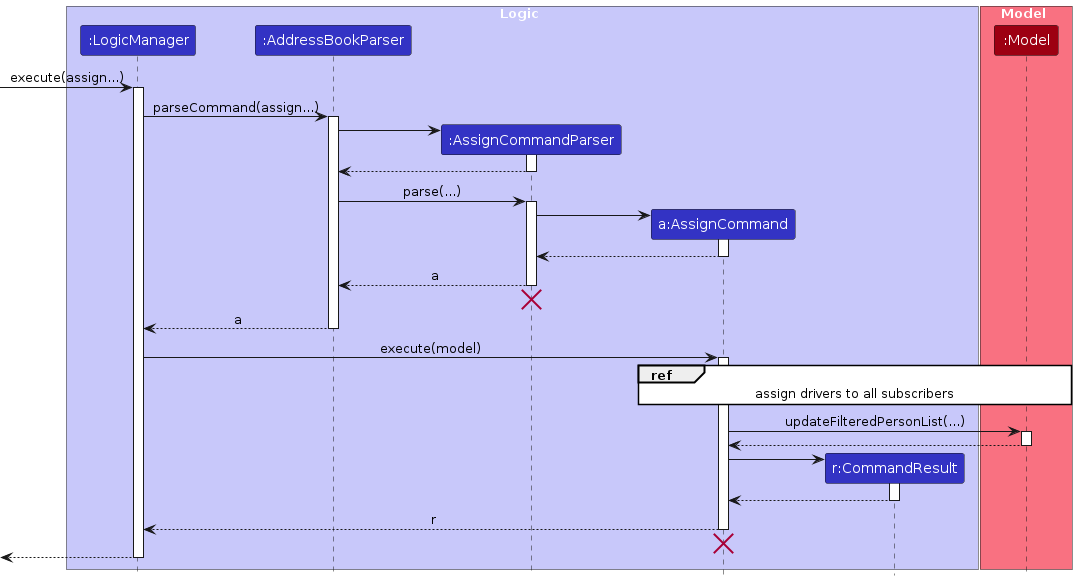

The following sequence diagram shows how an assign operation goes through the Logic component:

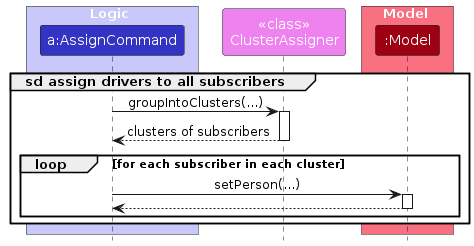

Separate sequence diagram showing how the assignment of all subscribers:

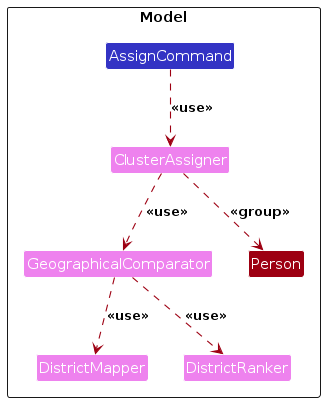

The following class diagram shows the structure of the clustering logic:

The AssignCommand calls ClusterAssigner#groupIntoClusters() to get the partitioned list of lists of Persons. It will then call Model#setPerson() to edit all the Persons in the address book. The clustering logic uses GeographicalComparator, DistrictMapper and DistrictRanker to sort subscribers geographically from west to east before partitioning.

During validation, Client2Door treats two drivers as duplicates if either their names match or their phone numbers match. This business-level identity check is separate from Driver#equals(), which remains strict and requires both name and phone number to match.

Delete box feature

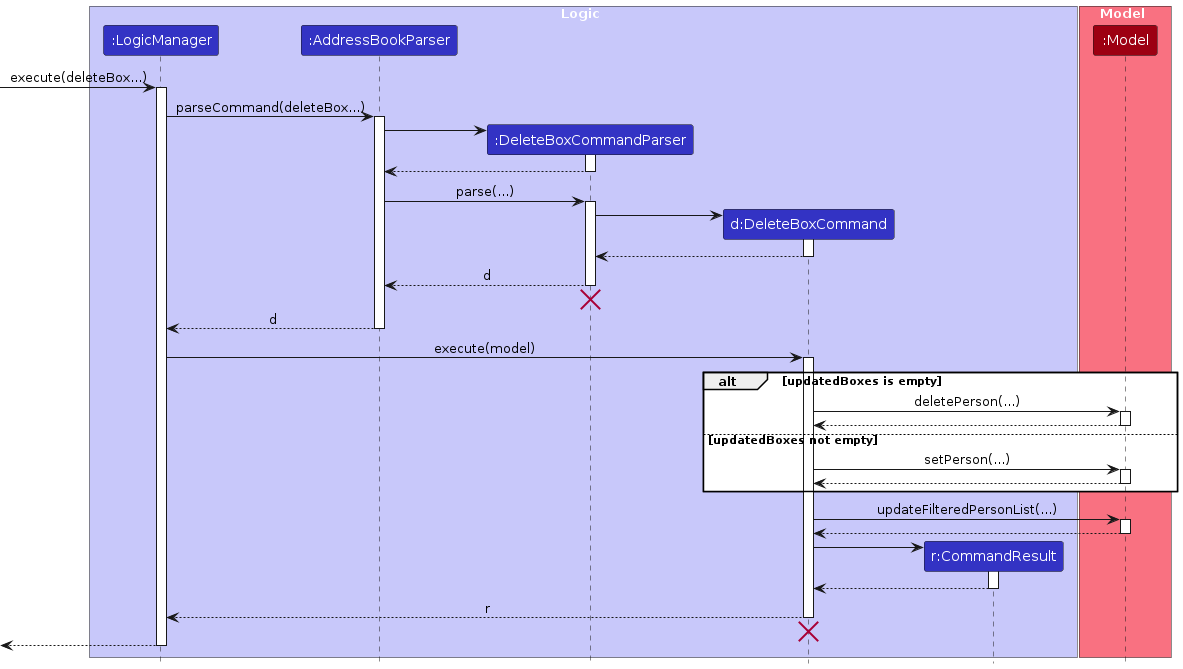

The following sequence diagram shows how a deleteBox operation goes through the Logic component:

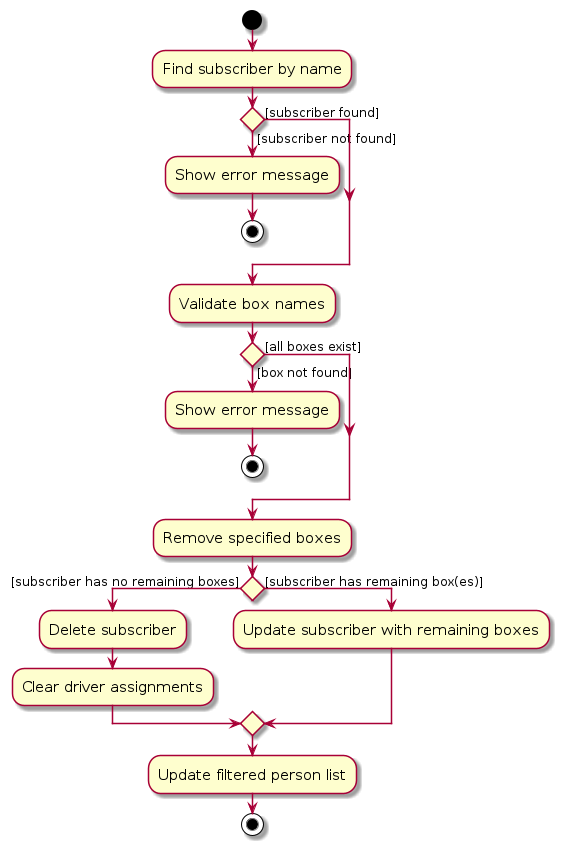

The following activity diagram summarizes what happens when a user executes a deletebox command:

A notable behaviour of DeleteBoxCommand is that if a subscriber has no remaining boxes after deletion, the subscriber is automatically deleted from the address book as well. Driver assignments are also cleared in this case.

Filter feature

FilterCommand supports two filtering modes: filtering by box name and filtering by assigned driver name. The mode is determined at parse time — if the d/ prefix is provided, a DriverAssignedToPersonPredicate is used; otherwise, a PersonHasBoxPredicate is used. Both are case-insensitive.

Export feature

The ExportCommand generates an HTML file containing the current delivery assignments, grouped by driver.

A key constraint is that all subscribers must have an assigned driver before export can proceed. If any subscriber is missing a driver, the command fails with an error.

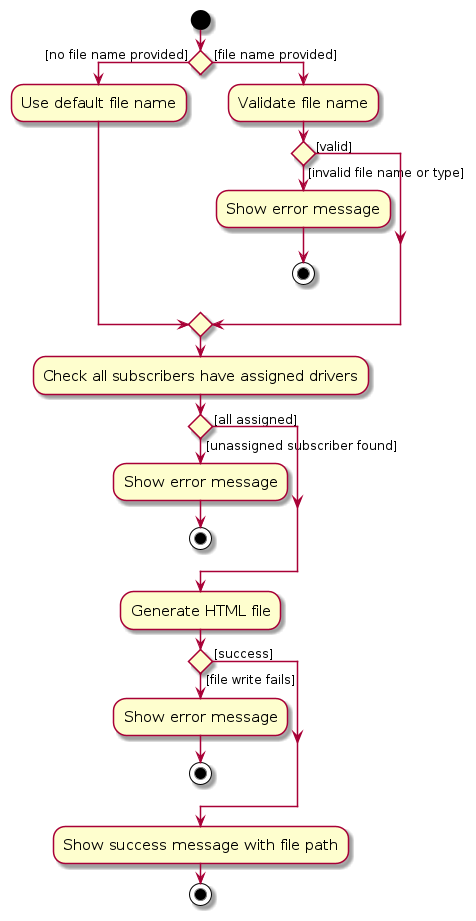

The following activity diagram summarizes what happens when a user executes an export command:

[Proposed] Undo/redo feature

Proposed Implementation

The proposed undo/redo mechanism is facilitated by VersionedAddressBook. It extends AddressBook with an undo/redo history, stored internally as an addressBookStateList and currentStatePointer. Additionally, it implements the following operations:

• VersionedAddressBook#commit() — Saves the current address book state in its history.
• VersionedAddressBook#undo() — Restores the previous address book state from its history.
• VersionedAddressBook#redo() — Restores a previously undone address book state from its history.

These operations are exposed in the Model interface as Model#commitAddressBook(), Model#undoAddressBook() and Model#redoAddressBook() respectively.

Given below is an example usage scenario and how the undo/redo mechanism behaves at each step.

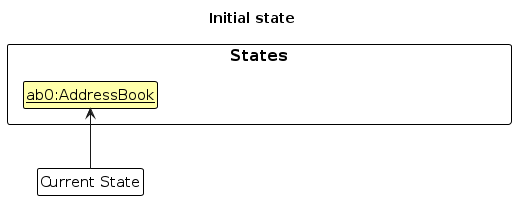

Step 1. The user launches the application for the first time. The VersionedAddressBook will be initialized with the initial address book state, and the currentStatePointer pointing to that single address book state.

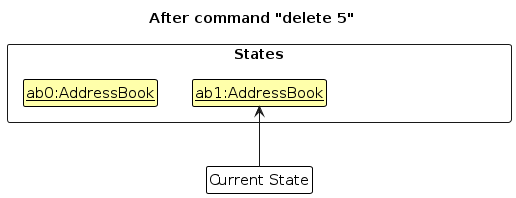

Step 2. The user executes delete 5 command to delete the 5th person in the address book. The delete command calls Model#commitAddressBook(), causing the modified state of the address book after the delete 5 command executes to be saved in the addressBookStateList, and the currentStatePointer is shifted to the newly inserted address book state.

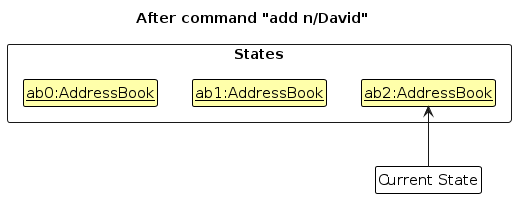

Step 3. The user executes add n/David …​ to add a new person. The add command also calls Model#commitAddressBook(), causing another modified address book state to be saved into the addressBookStateList.

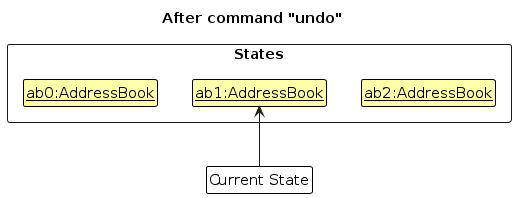

Step 4. The user now decides that adding the person was a mistake, and decides to undo that action by executing the undo command. The undo command will call Model#undoAddressBook(), which will shift the currentStatePointer once to the left, pointing it to the previous address book state, and restores the address book to that state.

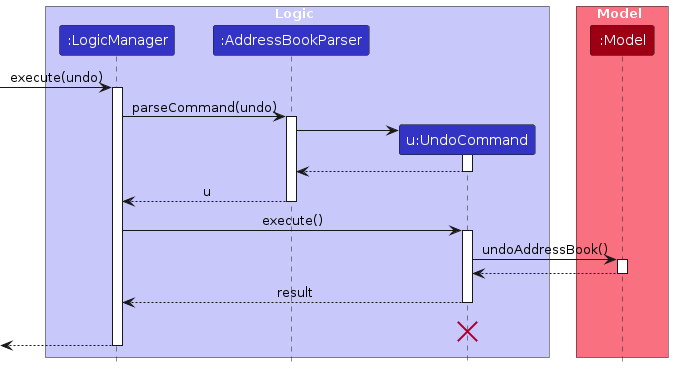

The following sequence diagram shows how an undo operation goes through the Logic component:

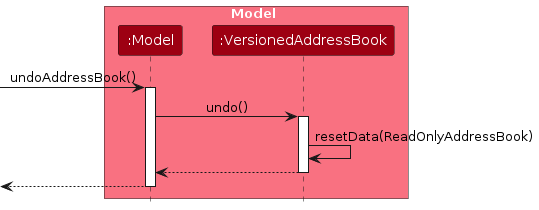

Similarly, how an undo operation goes through the Model component is shown below:

The redo command does the opposite — it calls Model#redoAddressBook(), which shifts the currentStatePointer once to the right, pointing to the previously undone state, and restores the address book to that state.

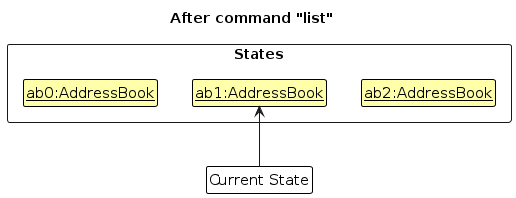

Step 5. The user then decides to execute the command list. Commands that do not modify the address book, such as list, will usually not call Model#commitAddressBook(), Model#undoAddressBook() or Model#redoAddressBook(). Thus, the addressBookStateList remains unchanged.

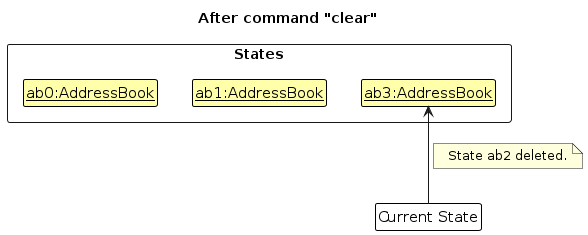

Step 6. The user executes clear, which calls Model#commitAddressBook(). Since the currentStatePointer is not pointing at the end of the addressBookStateList, all address book states after the currentStatePointer will be purged. Reason: It no longer makes sense to redo the add n/David …​ command. This is the behavior that most modern desktop applications follow.

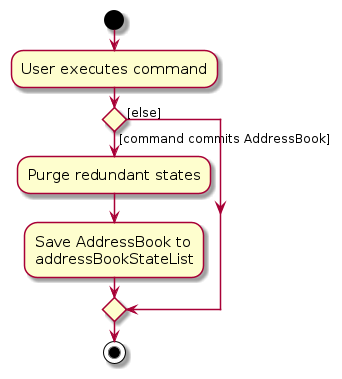

The following activity diagram summarizes what happens when a user executes a new command:

Design considerations:

Aspect: How undo & redo executes:

• Alternative 1 (current choice): Saves the entire address book.

  • Pros: Easy to implement.
  • Cons: May have performance issues in terms of memory usage.

• Alternative 2: Individual command knows how to undo/redo by itself.

  • Pros: Will use less memory (e.g. for delete, just save the person being deleted).
  • Cons: We must ensure that the implementation of each individual command are correct.

---

Documentation, logging, testing, configuration, dev-ops

• Documentation guide
• Testing guide
• Logging guide
• Configuration guide
• DevOps guide

---

Appendix: Requirements

Product scope

Target user profile:

• small delivery startup owners (e.g., subscription box services) in Singapore
• have limited manpower for admin work
• have limited road experience and are unfamiliar with local addresses
• can type fast and prefer typing to mouse interactions
• are comfortable using CLI apps

Value proposition (Client2Door):

• organizes customer contact and delivery details in one place
• provides a CLI-based alternative to GUI spreadsheets
• enables faster delivery tracking via quick access to client details
• helps optimize delivery routes by clustering addresses

User stories

Priorities: High (must have) - * * *, Medium (nice to have) - * *, Low (unlikely to have) - *

Use cases

(For all use cases below, the System is the Client2Door and the Actor is the Startup Owner, unless specified otherwise)

---

Use case: UC01 — Add a subscriber

MSS

1. Startup owner requests to add a subscriber.

2. Client2Door adds the subscriber to the active subscriber list.

3. Client2Door displays a success message and updated subscriber list.

   Use case ends.

Extensions

• 1a. Startup owner enters an invalid command word (e.g., typo, misspelling).

  • 1a1. Client2Door shows an error message indicating the command is invalid.

    Use case ends.

• 1b. Startup owner enters an invalid command format (e.g., parameters issue).

  • 1b1. Client2Door shows an error message indicating the format is invalid.

    Use case ends.

• 1c. Startup owner enters an invalid phone number (e.g., incorrect number of digits).

  • 1c1. Client2Door shows invalid phone number error message.

    Use case ends.

• 1d. Startup owner enters an invalid email address.

  • 1d1. Client2Door shows invalid email error message.

    Use case ends.

• 1e. Startup owner enters an invalid postal code.

  • 1e1. Client2Door shows invalid postal code error message.

    Use case ends.

• 1f. Startup owner adds a duplicate subscriber.

  • 1f1. Client2Door shows duplicate subscriber error message.

    Use case ends.

---

Use case: UC02 — Delete a subscriber

MSS

1. Startup owner requests to delete a subscriber at specific index in list.

2. Client2Door deletes the specified subscriber.

3. Client2Door displays success message and the updated subscriber list.

   Use case ends.

Extensions

• 1a. Startup owner enters an invalid index.

  • 1a1. Client2Door shows invalid index error message.

    Use case ends.

• 1b. Startup owner enters an invalid command format (e.g., parameters issue).

  • 1b1. Client2Door shows an error message indicating the format is invalid.

    Use case ends.

---

Use case: UC03 — List subscribers

MSS

1. Startup owner requests to list all active subscribers.

2. Client2Door displays all subscribers and all stored details.

   Use case ends.

Extensions

• 1a. Startup owner enters an invalid command word (e.g., typo, misspelling).

  • 1a1. Client2Door shows an error message indicating the command is invalid.

    Use case ends.

• 1b. Startup owner enters an invalid command format (e.g., parameters issue).

  • 1b1. Client2Door shows an error message indicating the format is invalid.

    Use case ends.

• 2a. The subscriber list is empty.

  • 2a1. Client2Door displays no subscribers

    Use case ends.

---

Use case: UC04 — Assign drivers to subscribers

MSS

1. Startup owner requests to assign drivers to subscribers.

2. Startup owner enters the assign command with one or more drivers, each with a name and phone number.

3. Client2Door validates the command and driver details.

4. Client2Door groups the current subscribers into clusters, with each cluster being assigned a driver.

5. Client2Door displays a success message and updated subscriber list.

   Use case ends.

Extensions

• 1a. Startup owner enters an invalid command word (e.g., typo, misspelling).

  • 1a1. Client2Door shows an error message indicating the command is invalid.

    Use case ends.

• 2a. Startup owner enters an invalid command format (e.g., missing or malformed parameters).

  • 2a1. Client2Door shows an error message indicating the format is invalid.

    Use case ends.

• 2b. Startup owner enters an invalid driver name.

  • 2b1. Client2Door shows an invalid name error message.

    Use case ends.

• 2c. Startup owner enters an invalid driver phone number (e.g., incorrect number of digits).

  • 2c1. Client2Door shows an invalid phone number error message.

    Use case ends.

• 2d. Startup owner specifies duplicate drivers (i.e. two drivers share the same name or the same phone number).

  • 2d1. Client2Door shows a duplicate driver error message.

    Use case ends.

• 4a. Client2Door is unable to complete the subscriber clustering or assignment process.

  • 4a1. Client2Door shows a failure message indicating that driver assignment failed.

    Use case ends.

---

Use case: UC05 — View help

MSS

1. Startup owner requests to view the help information.

2. Client2Door displays the help information.

   Use case ends.

Extensions

• 1a. Startup owner enters an invalid command word (e.g., typo, misspelling).

  • 1a1. Client2Door shows an error message indicating the command is invalid.

    Use case ends.

---

Use case: UC06 — Edit a subscriber

MSS

1. Startup owner requests to edit a subscriber.

2. Startup owner specifies the subscriber with the updated field(s).

3. Client2Door updates the subscriber details.

4. Client2Door displays a success message and updated subscriber list.

   Use case ends.

Extensions

• 2a. Startup owner enters an invalid command format.

  • 2a1. Client2Door shows an error message indicating the format is invalid.

    Use case ends.

• 2b. Startup owner provides invalid updated field value(s).

  • 2b1. Client2Door shows an error message indicating the invalid field value(s).

    Use case ends.

• 2c. Startup owner does not provide any field to update.

  • 2c1. Client2Door shows an error message indicating that at least one field must be provided.

    Use case ends.

---

Use case: UC07 — Update a subscriber remark

MSS

1. Startup owner requests to update a subscriber's remark.

2. Startup owner specifies the subscriber and the new remark.

3. Client2Door updates the subscriber's remark.

4. Client2Door displays a success message and updated subscriber list.

   Use case ends.

Extensions

• 2a. Startup owner enters an invalid command format.

  • 2a1. Client2Door shows an error message indicating the format is invalid.

    Use case ends.

• 2b. Startup owner enters an invalid remark (e.g., too long of a remark)

  • 2b1. Client2Door shows an error message indicating the remark format is invalid.

    Use case ends.

---

Use case: UC08 — Find subscribers

MSS

1. Startup owner requests to find subscribers by keyword.

2. Startup owner provides one or more keywords.

3. Client2Door searches for matching subscribers.

4. Client2Door displays the matching subscribers.

   Use case ends.

Extensions

• 2a. Startup owner enters an invalid command format.

  • 2a1. Client2Door shows an error message indicating the format is invalid.

    Use case ends.

• 3a. No subscribers match the keywords.

  • 3a1. Client2Door shows an empty result list.

    Use case ends.

---

Use case: UC09 — Update delivery status

MSS

1. Startup owner requests to update a subscriber's delivery status.

2. Startup owner specifies the subscriber and the new status.

3. Client2Door updates the subscriber's delivery status.

4. Client2Door displays a success message and updated subscriber list.

   Use case ends.

Extensions

• 2a. Startup owner enters an invalid command format.

  • 2a1. Client2Door shows an error message indicating the format is invalid.

    Use case ends.

• 2b. Startup owner provides an invalid delivery status.

  • 2b1. Client2Door shows an error message indicating the status is invalid.

    Use case ends.

---

Use case: UC10 — Filter subscribers

MSS

1. Startup owner requests to filter subscribers.

2. Startup owner provides one or more filter criteria.

3. Client2Door filters the subscriber list.

4. Client2Door displays the matching subscribers.

   Use case ends.

Extensions

• 2a. Startup owner enters an invalid command format.

  • 2a1. Client2Door shows an error message indicating the format is invalid.

    Use case ends.

• 3a. No subscribers match the filter criteria.

  • 3a1. Client2Door shows an empty result list.

    Use case ends.

---

Use case: UC11 — Add box subscriptions to a subscriber

MSS

1. Startup owner requests to add one or more box subscriptions to a subscriber.

2. Startup owner specifies the subscriber and box subscription detail(s).

3. Client2Door adds the box subscription(s) to the specified subscriber.

4. Client2Door displays a success message and updated subscriber list.

   Use case ends.

Extensions

• 2a. Startup owner enters an invalid command format.

  • 2a1. Client2Door shows an error message indicating the format is invalid.

    Use case ends.

• 2b. Startup owner specifies an invalid subscriber.

  • 2b1. Client2Door shows an error message indicating the subscriber cannot be found.

    Use case ends.

• 2c. Startup owner provides invalid box subscription detail(s).

  • 2c1. Client2Door shows an error message indicating the box subscription detail(s) are invalid.

    Use case ends.

---

Use case: UC12 — Edit a box subscription

MSS

1. Startup owner requests to edit a subscriber's box subscription.

2. Startup owner specifics the box and its updated field(s).

3. Client2Door updates the box subscription.

4. Client2Door displays a success message and updated subscriber list.

   Use case ends.

Extensions

• 2a. Startup owner enters an invalid command format.

  • 2a1. Client2Door shows an error message indicating the format is invalid.

    Use case ends.

• 2b. Startup owner specifies an invalid box.

  • 2b1. Client2Door shows an error message indicating the box cannot be found.

    Use case ends.

• 2c. Startup owner does not provide any field to update.

  • 2c1. Client2Door shows an error message indicating that at least one field must be provided.

    Use case ends.

---

Use case: UC13 — Delete box subscriptions from a subscriber

MSS

1. Startup owner requests to delete one or more box subscriptions from a subscriber.

2. Startup owner specifies the box subscription(s) to delete.

3. Client2Door deletes the specified box subscription(s).

4. Client2Door displays a success message and updated subscriber list.

   Use case ends.

Extensions

• 2a. Startup owner enters an invalid command format.

  • 2a1. Client2Door shows an error message indicating the format is invalid.

    Use case ends.

• 2b. Startup owner specifies a box that does not exist.

  • 2b1. Client2Door shows an error message indicating the box cannot be found.

    Use case ends.

• 3a. The deleted box subscription(s) were the subscriber's last remaining box subscription(s).

  • 3a1. Client2Door deletes the subscriber from the active subscriber list.

    Use case ends.

---

Use case: UC14 — Export delivery assignments

MSS

1. Startup owner requests to export delivery assignments.

2. Startup owner optionally provides a file path.

3. Client2Door generates the export file.

4. Client2Door displays a success message indicating the export location.

   Use case ends.

Extensions

• 2a. Startup owner enters an invalid command format.

  • 2a1. Client2Door shows an error message indicating the format is invalid.

    Use case ends.

• 3a. There are no delivery assignments to export.

  • 3a1. Client2Door shows an error message indicating that export cannot be performed.

    Use case ends.

• 3b. Client2Door is unable to generate or save the export file.

  • 3b1. Client2Door shows an error message indicating that export failed.

    Use case ends.

---

Use case: UC15 — Import subscribers from CSV

MSS

1. Startup owner requests to import subscribers from a CSV file.

2. Startup owner provides a CSV file.

3. Client2Door reads the CSV file and imports valid subscribers.

4. Client2Door displays a success message and updated subscriber list.

   Use case ends.

Extensions

• 2a. Startup owner enters an invalid command format.

  • 2a1. Client2Door shows an error message indicating the format is invalid.

    Use case ends.

• 2b. Startup owner provides an invalid file.

  • 2b1. Client2Door shows an error message indicating the file is invalid.

    Use case ends.

• 3a. The CSV file cannot be found.

  • 3a1. Client2Door shows an error message indicating that the file cannot be found.

    Use case ends.

• 3b. The CSV file contains invalid or duplicate rows.

  • 3b1. Client2Door skips the invalid or duplicate rows and reports them.

    Use case ends.

• 3c. No valid subscribers can be imported from the CSV file.

  • 3c1. Client2Door shows a message indicating that no subscribers were imported.

    Use case ends.

---

Use case: UC16 — Clear all subscribers

MSS

1. Startup owner requests to clear all subscribers.

2. Client2Door removes all subscribers from the active subscriber list.

3. Client2Door displays a success message and an empty subscriber list.

   Use case ends.

Extensions

• 1a. Startup owner enters an invalid command word (e.g., typo, misspelling).

  • 1a1. Client2Door shows an error message indicating the command is invalid.

    Use case ends.

• 1b. Startup owner enters an invalid command format.

  • 1b1. Client2Door shows an error message indicating the format is invalid.

    Use case ends.

---

Non-Functional Requirements

Environment Requirements

• The system should work on any mainstream OS with Java 17 or above installed.
• The system should work without requiring an installer.
• The system should not depend on any remote server maintained by the development team.

Performance & Capacity Requirements

• The system should manage up to 1000 persons without noticeable performance degradation.
• The system should respond to user commands within 1 second when managing up to 1000 persons.

Usability & Accessibility Requirements

• Users should be able to complete most tasks faster using commands than using a mouse.
• New users should be able to perform basic commands after reading the User Guide without external assistance.
• The GUI should display correctly without layout distortion at 1920×1080 (scaling 100 - 125%), and remain fully functional at 1280×720 (scaling up to 150%).

Data Requirements

• The system should support persistent local storage of user data.
• The system should restore previously saved data upon restart.
• The system should prevent corruption of stored data during unexpected shutdown.
• The system should save data automatically after each modifying command.

Reliability & Error Handling

• The system should operate continuously without failure during normal usage sessions.
• Invalid commands should not cause the system to crash.
• The system should display informative error messages for invalid user inputs.
• The system should handle unexpected or malformed input gracefully.

Maintainability & Extensibility

• The codebase should follow standard Java coding conventions.
• The system should be modular to allow future feature extensions.

Security & Privacy

• User data should be stored locally and not transmitted externally without user action.

Documentation

• A User Guide describing all commands should be provided.
• A Developer Guide describing the system architecture should be provided to facilitate maintenance.

Glossary

• Box: A physical subscription box to be delivered to a subscriber.

• CLI (Command Line Interface): A text-based interface where users interact with the system by typing commands instead of using graphical controls.

• Cluster: A group of subscribers geographically grouped together and assigned to a single driver for efficient delivery.

• Delivery status: The current state of a subscriber's delivery, which can be PENDING, PACKED, or DELIVERED.

• Driver: A delivery driver assigned to a cluster of subscribers for a delivery session.

• Mainstream OS: A widely used operating system such as Windows, macOS, or Linux.

• Postal code: A 6-digit Singapore postal code (e.g., 521123) used to identify a subscriber's delivery address.

• Startup owner: The primary user of the system, typically a small business owner managing customer subscriptions and deliveries.

• Subscriber: A customer with an active subscription who is expected to receive recurring deliveries.

• Subscription information: Details of a subscriber's box subscription, consisting of a box name and the number of months subscribed.

---

Appendix: Instructions for manual testing

Given below are instructions to test the app manually.

Launch and shutdown

1. Initial launch

   1. Download the jar file and move/copy into an empty folder

2. Open a terminal and navigate to the folder using cd. For example:
   Windows (Command Prompt):

   cd C:\MyBusiness\Client2Door
   java -jar Client2Door.jar


   Mac / Linux (Terminal):

   cd ~/Client2Door
   java -jar Client2Door.jar


   3. Run the app:
      java -jar Client2Door.jar
      NOTE: The window size may not be optimum.

3. Saving window preferences

   1. Resize the window to an optimum size. Move the window to a different location. Close the window.

   2. Re-launch the app the same way as the first time.
      Expected: The most recent window size and location is retained.

Adding a subscriber

1. Adding a subscriber while all subscribers are being shown

   1. Prerequisites: List all subscribers using the list command. Ensure there is no existing subscriber with the same details.

   2. Test case: add n/John Doe p/91234567 e/johndoe@email.com a/Blk 123 Tampines St 11 #05-67 Singapore 521123 b/box-1:2
      Expected: New subscriber is added to the list. Details of the added subscriber shown in the status message.

   3. Test case: add n/John Doe p/91234567 e/johndoe@email.com a/Blk 123 Tampines St 11 #05-67 Singapore 521123 b/box-1:2
      Expected: No subscriber is added as there is a duplicate subscriber. Error details shown in the status message. State of address book remains the same.

   4. Other incorrect add commands to try: add, add n/John Doe, add n/John Doe p/91234567 e/invalid-email a/Blk 123 Tampines St 11 #05-67 Singapore 521123 b/box-1:2, add n/John Doe p/91234567 e/johndoe@email.com a/No postal code b/box-1:2
      Expected: Similar to previous.

Editing a subscriber

1. Editing a subscriber while all subscribers are being shown

   1. Prerequisites: List all subscribers using the list command. At least one subscriber in the list.

   2. Test case: edit 1 p/97777777 e/alexyeoh_new@email.com
      Expected: First subscriber is updated with the new phone number and email. Updated details shown in the status message.

   3. Test case: edit 1 r/prefers evening delivery
      Expected: First subscriber's remark is updated. Updated details shown in the status message.

   4. Test case: edit 0 p/91234567
      Expected: No subscriber is edited. Error details shown in the status message. State of address book remains the same.

   5. Other incorrect edit commands to try: edit, edit 1, edit x p/91234567, edit 1 e/invalid-email, edit 1 a/No postal code
      Expected: Similar to previous.

Deleting a subscriber

1. Deleting a subscriber while all subscribers are being shown

   1. Prerequisites: List all subscribers using the list command. At least one subscriber in the list.

   2. Test case: delete 1
      Expected: First contact is deleted from the list. Details of the deleted contact shown in the status message.

   3. Test case: delete 0
      Expected: No subscriber is deleted. Error details shown in the status message. State of address book remains the same

   4. Other incorrect delete commands to try: delete, delete x, ... (where x is larger than the list size)
      Expected: Similar to previous.

Updating a subscriber's remark

1. Updating a subscriber's remark while all subscribers are being shown

   1. Prerequisites: List all subscribers using the list command. At least one subscriber in the list.

   2. Test case: remark 1 r/leave at door and ring bell
      Expected: First subscriber's remark is updated. Updated details shown in the status message.

   3. Test case: remark 0 r/some remark
      Expected: No subscriber is updated. Error details shown in the status message. State of address book remains the same.

   4. Other incorrect remark commands to try: remark 1 no prefix, remark x r/test, remark 1
      Expected: Similar to previous.

Adding boxes to a subscriber

1. Adding one or more boxes to an existing subscriber

   1. Prerequisites: A subscriber named Alex Yeoh exists.

   2. Test case: addbox n/Alex Yeoh b/box-3:4
      Expected: box-3 is added to Alex Yeoh with the appropriate subscription duration. Updated details shown in the status message.

   3. Test case: addbox n/Alex Yeoh b/box-4:2 b/box-5:2
      Expected: Both boxes are added to Alex Yeoh. Updated details shown in the status message.

   4. Test case: addbox n/Unknown Person b/box-1:2
      Expected: No box is added. Subscriber not found error shown.

   5. Other incorrect addbox commands to try: addbox, addbox n/Alex Yeoh, addbox n/Alex Yeoh b/box-1, addbox n/Alex Yeoh b/:2, addbox n/Alex Yeoh b/box-1:0
      Expected: Similar to previous.

Editing a box

1. Editing a box belonging to a subscriber

   1. Prerequisites: A subscriber named Alex Yeoh exists with a box named box-1.

   2. Test case: editbox n/Alex Yeoh b/box-1 nb/box-2
      Expected: box-1 under Alex Yeoh is renamed to box-2. Updated details shown in the status message.

   3. Test case: editbox n/Alex Yeoh b/box-1 ex/3
      Expected: box-1 under Alex Yeoh has its subscription duration updated. Updated details shown in the status message.

   4. Test case: editbox n/Alex Yeoh b/nosuchbox nb/box-2
      Expected: No box is edited. Box not found error shown.

   5. Test case: editbox n/Alex Yeoh b/box-1
      Expected: No box is edited. Error details shown in the status message as no editable field is provided.

   6. Other incorrect editbox commands to try: editbox, editbox n/Alex Yeoh, editbox n/Alex Yeoh b/box-1 ex/0, editbox n/Unknown Person b/box-1 nb/box-2
      Expected: Similar to previous.

Deleting boxes from a subscriber

1. Deleting a box from a subscriber with multiple boxes

   1. Prerequisites: A subscriber named Alex Yeoh exists with at least two boxes.

   2. Test case: deletebox n/Alex Yeoh b/box-1
      Expected: box-1 removed from Alex Yeoh. Success message shown.

   3. Test case: deletebox n/Alex Yeoh b/box-1 b/box-2
      Expected: Both boxes removed. If no boxes remain, Alex Yeoh is automatically deleted. Success message indicates subscriber was also deleted.

   4. Test case: deletebox n/Alex Yeoh b/nosuchbox-1
      Expected: No change. Box does not exist error shown.

   5. Test case: deletebox n/Unknown Subscriber b/box-1
      Expected: No change. Subscriber not found error shown.

Finding subscribers

1. Finding subscribers by keyword

   1. Prerequisites: List all subscribers using the list command. Ensure there are subscribers with searchable names in the list.

   2. Test case: find Alex
      Expected: Only subscribers with name containing Alex are shown. Status message shows the number of persons listed.

   3. Test case: find Alex Bernice
      Expected: Subscribers with names containing either Alex or Bernice are shown.

   4. Test case: find NoSuchName
      Expected: No subscribers are shown. Status message indicates that 0 persons are listed.

   5. Other incorrect find commands to try: find, find @@@
      Expected: Similar to previous or format error shown in the status message.

Assigning drivers

1. Assigning drivers while all subscribers are being shown

   1. Prerequisites: List all subscribers using the list command. Multiple subscribers in the list.

   2. Test case: assign n/David Lim p/91234567 n/Priya Nair p/98765432
      Expected: All subscribers are assigned to one of the provided drivers. Updated driver assignments are reflected in the list. Success message shown in the status message.

   3. Test case: assign n/Patrick Loh p/87171717 n/Ali Chow p/88234567
      Expected: Updated new driver assignments are reflected in the list. Success message shown in the status message.

   4. Possible incorrect assign commands to try: assign, assign n/David Lim, assign p/91234567, assign n/David Lim p/000, assign n/ p/91234567
      Expected: No driver assignments are made. Error details shown in the status message. State of address book remains the same.

Note: if the number of declared drivers exceed the number of subscribers, there will be a message indicating the number of excess drivers

Marking delivery status

1. Updating the delivery status of a subscriber

   1. Prerequisites: List all subscribers using the list command. At least one subscriber in the list.

   2. Test case: mark 1 packed
      Expected: First subscriber's delivery status is updated to Packed. Updated details shown in the status message.

   3. Test case: mark 1 delivered
      Expected: First subscriber's delivery status is updated to Delivered. Updated details shown in the status message.

   4. Test case: mark 0 pending
      Expected: No subscriber is updated. Error details shown in the status message. State of address book remains the same.

   5. Other incorrect mark commands to try: mark, mark 1, mark x packed, mark 1 unknownstatus
      Expected: Similar to previous.

Filtering subscribers

1. Filtering subscribers by box type or assigned driver

   1. Prerequisites: List all subscribers using the list command. Ensure there are subscribers with at least one box type or assigned driver available for filtering.

   2. Test case: filter box-1
      Expected: Only subscribers who have box-1 are shown. Status message shows the number of matching subscribers listed.

   3. Test case: filter d/David Lim
      Expected: Only subscribers assigned to driver David Lim are shown. Status message shows the number of matching subscribers listed.

   4. Test case: filter NoSuchBox
      Expected: No subscribers are shown. Status message indicates that 0 subscribers are listed.

   5. Other incorrect filter commands to try: filter, filter d/, filter d
      Expected: Similar to previous or format error shown in the status message.

Importing subscribers

1. Importing subscribers from a CSV file

   1. Prerequisites: A valid CSV file named sample.csv exists in the data folder.

   2. Test case: import sample.csv
      Expected: Valid subscribers from sample.csv are imported into the list. Status message shows how many subscribers were imported.

   3. Test case: import missing.csv
      Expected: No subscribers are imported. Error details shown in the status message. State of address book remains the same.

   4. Other incorrect import commands to try: import, import sample, import data/sample.csv, import sample.txt
      Expected: Similar to previous.

Note: The CSV file must in the correct format as described here in the User Guide!

Clearing all subscribers

1. Clearing all subscribers from the address book

   1. Prerequisites: List all subscribers using the list command. At least a subscriber in the list.

   2. Test case: clear
      Expected: All subscribers are removed from the list. Success message shown in the status message.

   3. Other clear commands to try: clear 123, clear abc
      Expected: Similar to previous, since extraneous parameters for clear are ignored.

Exporting delivery assignments

1. Exporting delivery assignments after drivers have been assigned

   1. Prerequisites: Assign drivers first using the assign command. At least one subscriber in the list has a driver assigned.

   2. Test case: export
      Expected: A delivery_assignments.html file is generated at the default location (data folder). Success message shown in the status message with the file path.

   3. Test case: export test.txt
      Expected: No file is generated since file format is invalid. Error details shown in the status message. State of address book remains the same.

   4. Other incorrect export commands to try: export invalidfile, export data/test, export /invalid/path/test.html
      Expected: Similar to previous.

Saving data

1. Saving the current state of address book
   1. Running exit in the app should automatically save the current state of the address book
      Note: The data is saved as addressbook.json in the data folder that is created in the same folder which the Client2Door.jar file is in
   2. Next time when user re-launches the app, the previously saved state of the address book should be reloaded.
2. Dealing with corrupted data files
   1. Edit the addressbook.json file in the data folder (e.g., set expiry date of box to be null)
   2. The app should not be able to start up correctly
   3. User may refer to the example file format here to compare against for potentially corrupt data files (i.e., missing or invalid fields)
   4. Ensure that the formatting of fields and indentations are the same as the given example
   5. Run the app again. The app should be able to run correctly without data loss.

Example format of the data file

• This example is given for debugging and correcting of potentially corrupt addressbook.json data files:

{
  "persons" : [ {
    "name" : "Alex Yeoh",
    "phone" : "87438807",
    "email" : "alexyeoh@example.com",
    "address" : "Blk 30 Geylang Street 29, #06-40, Singapore 123456",
    "tags" : [ "friends" ],
    "remark" : "Leave at doorstep",
    "deliveryStatus" : "Delivered",
    "driver" : null,
    "boxes" : [ {
      "boxName" : "box-1",
      "expiryDate" : "2026-06-30"
    } ]
  }, {
    "name" : "Bernice Yu",
    "phone" : "99272758",
    "email" : "berniceyu@example.com",
    "address" : "Blk 30 Lorong 3 Serangoon Gardens, Singapore 123456, #07-18",
    "tags" : [ "colleagues", "friends" ],
    "remark" : "Ring doorbell",
    "deliveryStatus" : "Pending",
    "driver" : null,
    "boxes" : [ {
      "boxName" : "box-1",
      "expiryDate" : "2026-06-30"
    }, {
      "boxName" : "box-2",
      "expiryDate" : "2026-07-31"
    } ]
  }, {
    "name" : "Charlotte Oliveiro",
    "phone" : "93210283",
    "email" : "charlotte@example.com",
    "address" : "Blk 11 Ang Mo Kio Street 74, #11-04, Singapore 123456",
    "tags" : [ "neighbours" ],
    "remark" : "Allergic to nuts",
    "deliveryStatus" : "Packed",
    "driver" : null,
    "boxes" : [ {
      "boxName" : "box-3",
      "expiryDate" : "2026-08-31"
    } ]
  }, {
    "name" : "David Li",
    "phone" : "91031282",
    "email" : "lidavid@example.com",
    "address" : "Blk 436 Serangoon Gardens Street 26, #16-43, Singapore 123456",
    "tags" : [ "family" ],
    "remark" : "Leave at riser",
    "deliveryStatus" : "Delivered",
    "driver" : null,
    "boxes" : [ {
      "boxName" : "box-4",
      "expiryDate" : "2026-09-30"
    } ]
  }, {
    "name" : "Irfan Ibrahim",
    "phone" : "92492021",
    "email" : "irfan@example.com",
    "address" : "Blk 47 Tampines Street 20, #17-35, Singapore 123456",
    "tags" : [ "classmates" ],
    "remark" : "Do not ring doorbell",
    "deliveryStatus" : "Delivered",
    "driver" : null,
    "boxes" : [ {
      "boxName" : "box-5",
      "expiryDate" : "2026-10-31"
    } ]
  }, {
    "name" : "Roy Balakrishnan",
    "phone" : "92624417",
    "email" : "royb@example.com",
    "address" : "Blk 45 Aljunied Street 85, #11-31, Singapore 123456",
    "tags" : [ "colleagues" ],
    "remark" : "Ask security guard for delivery",
    "deliveryStatus" : "Pending",
    "driver" : null,
    "boxes" : [ {
      "boxName" : "box-6",
      "expiryDate" : "2026-11-30"
    } ]
  } ]
}
